Tunnel Boring Mud System (TBM)

The KD Series Separation System is of modular system construction. It is designed for the treatment of all kinds of slurries used in common construction techniques.

Features

General Description

The KD Series Separation System is of modular system construction. It is designed for the treatment of all kinds of slurries used in common construction techniques.
Application
1.Slurry supported grab works for piles and diaphragm walls
2.Deep drilling
3.Tunnelling
4.Aggregate processing
5.Mining Industry

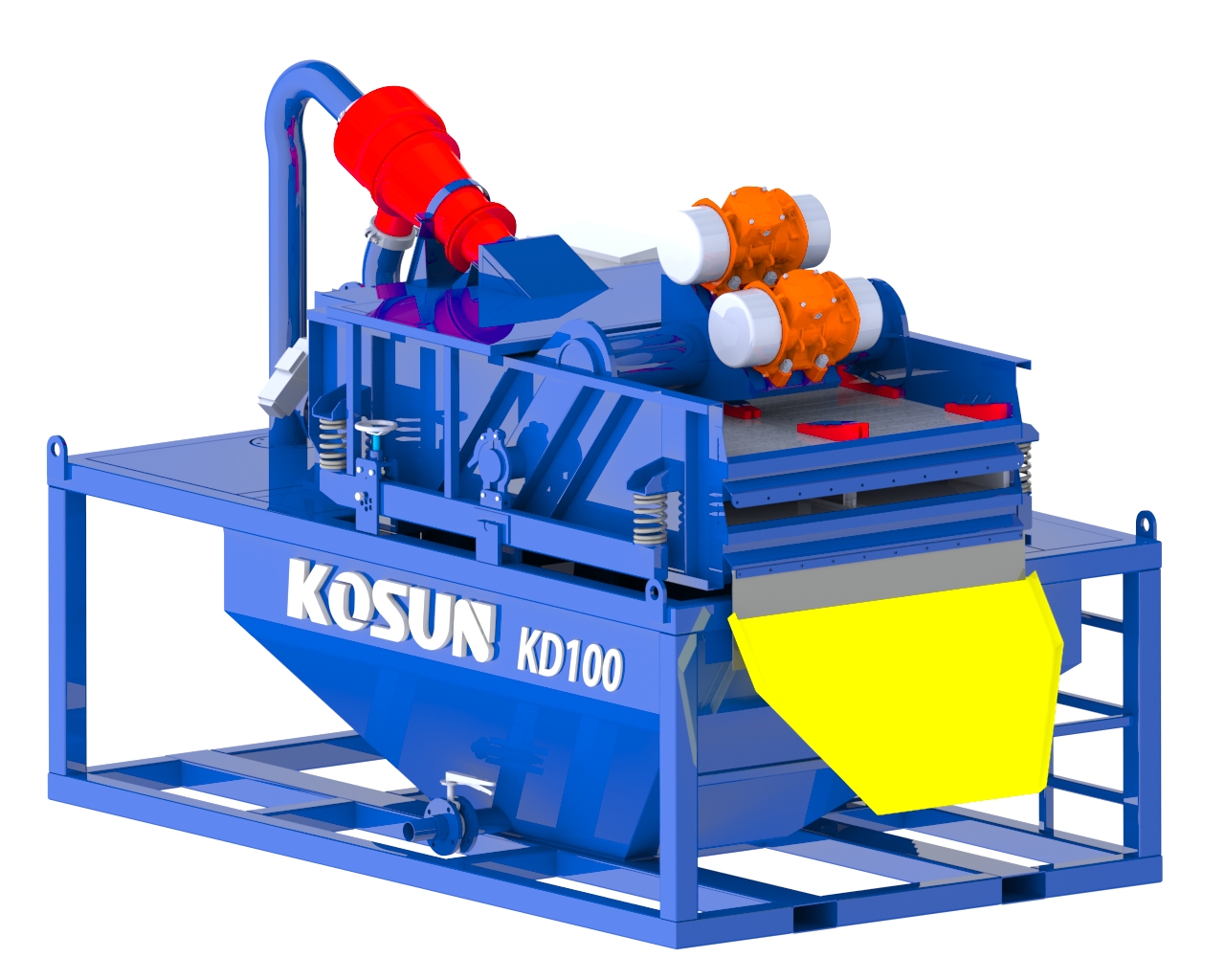

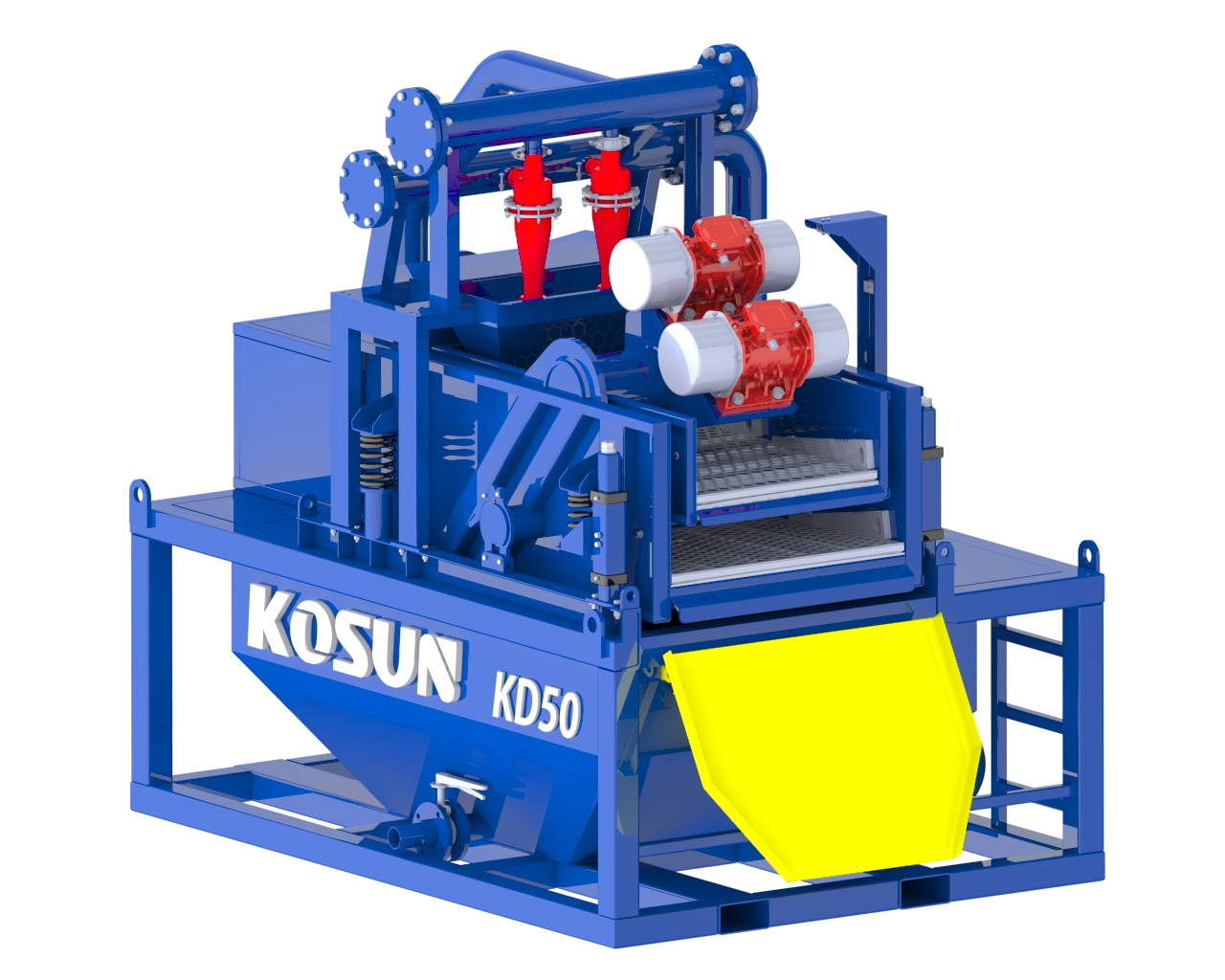

KD-D110016 Separation System

The KD-D110016 fitted with a desanding cyclone and a fine vibrating shaker. From the coarse screen, the slurry will drop the desanding module, where a pump unit with a cyclone of 12” in diameter removes sand from the slurry.

Model KD-D110016
Max. handling capacity 100m3/h
Max. mud density 1.18g/cm3
Sand contents <18% measured at the elutriationmeter
Main reservoir capacity 2m3
Overall dimension 3000x1800x2500mm
Total power draw 26kW

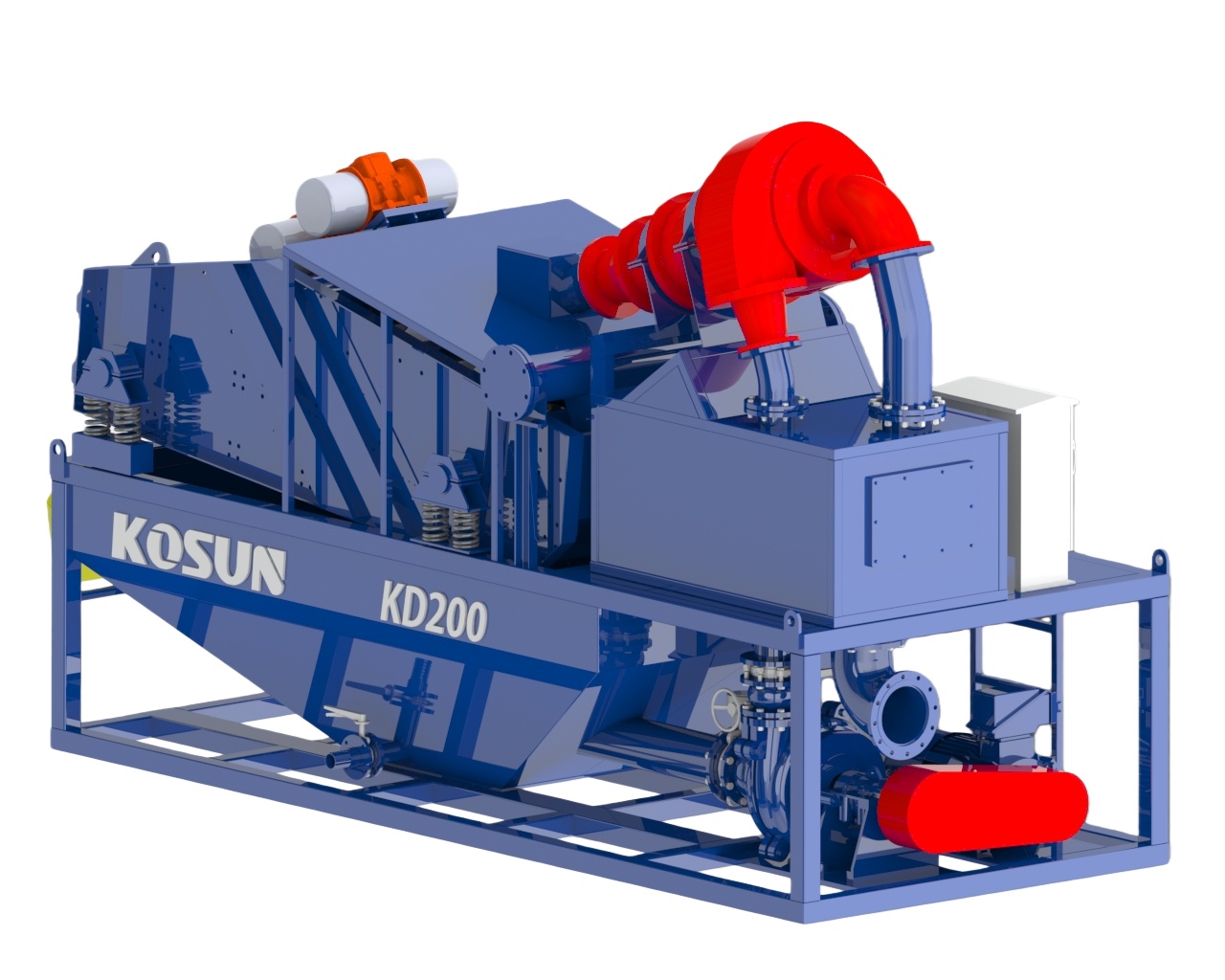

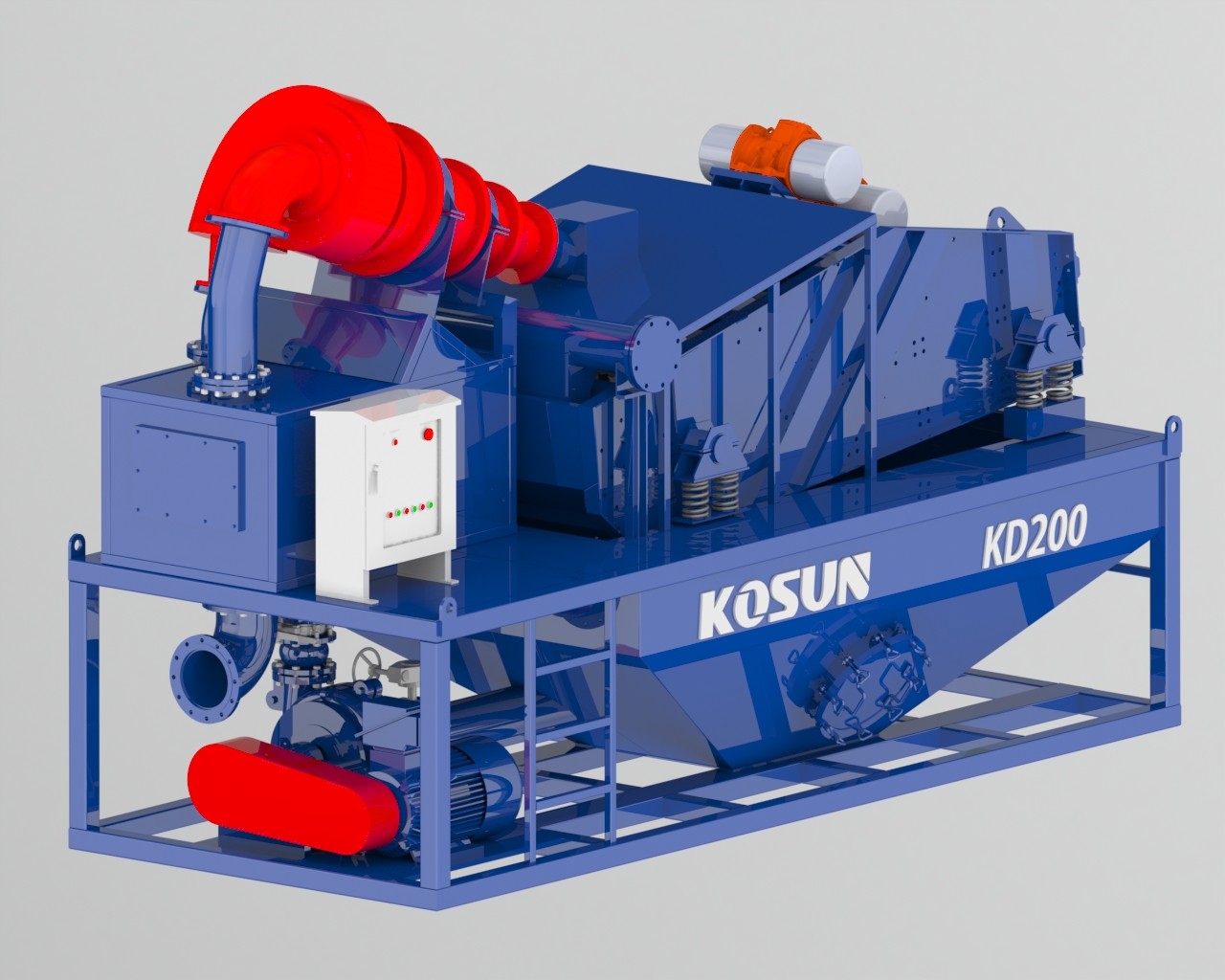

KD-2250-30 Separation System
The KD-2250-30 consists of a KD-D225016 desanding module fitted with a desanding cyclone and a fine vibrating shaker, and a KD-S020033 desilting module for subsequent separation of fines.
From the coarse screen, the slurry will drop the desanding module, where a pump unit with a cyclone of 18” in diameter removes sand from the slurry and another pump unit with three cyclones of 6” in diameter carry out a subsequent refinement as desired.

Model KD-2250-30
Max. handling capacity 250m3/h
Max. mud density 1.18g/cm3
Sand contents <18% measured at the elutriationmeter
Main reservoir capacity 2.3m3
Overall dimension 4050x1600x3500mm
Total power draw 116kW

KD-2425-30 Separation System
The KD-2425-30 consists of a KD-C1A coarse shaker module fitted with a coarse vibrating screen for removal of large particles, a KD-D242526 desanding module fitted with two desanding cyclones and a fine vibrating shaker, and a KD-S020063 desilting module for subsequent separation of fines.
From the coarse shaker, the slurry let into the system will drop into a collecting box to then be conveyed through a connecting trough to the desanding module, where a pump unit with two cyclone of 18” in diameter removes sand from the slurry and another pump unit with six cyclone of 6” in diameter carry out a subsequent refinement as desired.



Model KD-2425-30
Max. handling capacity 425m3/h
Max. mud density 1.18g/cm3
Sand contents <18% measured at the elutriationmeter
Main reservoir capacity 2.8m3
Overall dimension 5570x2200x4600mm
Total power draw 150kW

KD-1500-30 Separation System
The KD-1500-30 consists of a KD-C1A coarse shaker module fitted with a coarse vibrating screen for removal of large particles, two sets of KD-D125016 desanding module fitted with a desanding cyclone and a fine vibrating shaker, and a KD-S020033 desilting module for subsequent separation of fines.
From the coarse shaker, the slurry let into the system will drop into a collecting trough to then be separated and conveyed through two connecting pipe to the two sets of desanding module, where a pump unit with a cyclone of 18” in diameter removes sand from the slurry and another pump unit with three cyclones of 6” in diameter carry out a subsequent refinement as desired.

Model KD-1500-30
Max. handling capacity 500m3/h
Max. mud density 1.18g/cm3
Sand contents <18% measured at the elutriationmeter
Main reservoir capacity 4.6m3
Overall dimension 7600x4050x3900mm
Total power draw 235kW
