In drilling fluid solids control, removing fine solid particles after primary screening is an important step in maintaining mud quality. A mud cleaner combines hydrocyclone separation with vibrating screen treatment to handle solids that remain in the drilling fluid after initial processing.
The KOSUN MD Series Mud Cleaner is designed for secondary or tertiary solids control, helping separate unwanted solids while allowing recoverable drilling fluid to return to the circulation system.
An Integrated Design for Multi-Stage Separation
The mud cleaner integrates a hydrocyclone assembly with an underflow vibrating screen. These components perform complementary separation tasks within a compact equipment layout.
The desander and desilter hydrocyclones separate solid particles through centrifugal action. The concentrated underflow then passes onto the vibrating screen, where additional liquid is recovered and larger particles are retained for discharge.
This combination allows the equipment to address different particle sizes within one unit, making it suitable for integration into drilling fluid solids control systems.
Key Design Features
Hydrocyclone configurations for different operating requirements
The number and specifications of the desander and desilter cones can be selected according to the required treatment capacity and separation requirements. Cone materials include polyurethane (PU), high-chromium cast iron and ceramic options, depending on the configuration.
Adjustable vibrating screen deck
The adjustable screen deck allows the operator to modify the screen angle during operation, helping adapt the equipment to changing working conditions.
Reinforced screen support and convenient maintenance
The screen assembly is designed to support the screening process, while the hook-strip screen arrangement facilitates screen replacement and routine maintenance.
Compact footprint and flexible feeding options
A compact structure helps simplify equipment arrangement in space-constrained drilling sites. Top-feed and weir-feed options provide additional flexibility when planning the installation.
Integrating the Mud Cleaner into a Solids Control System
A mud cleaner generally operates after primary solids removal by a shale shaker. Depending on the system configuration, it can serve as secondary or tertiary separation equipment before subsequent treatment stages.
Its actual performance depends on factors such as drilling fluid properties, particle characteristics, screen selection, hydrocyclone configuration and operating conditions. Selecting the appropriate configuration is therefore essential to achieving the intended separation results.

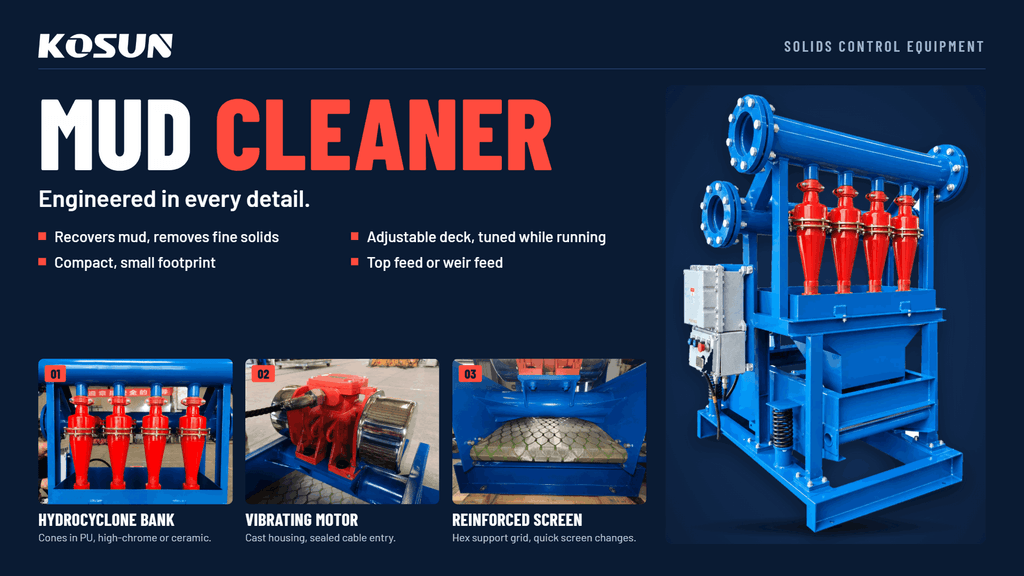

From the hydrocyclone bank to the vibrating motor and screen assembly, every component contributes to the overall separation process. A well-designed mud cleaner is not simply a combination of individual parts; it is an integrated piece of equipment that must work in coordination with the wider solids control system.
KOSUN provides mud cleaning equipment for drilling fluid solids control applications, with configurations selected according to project requirements.
