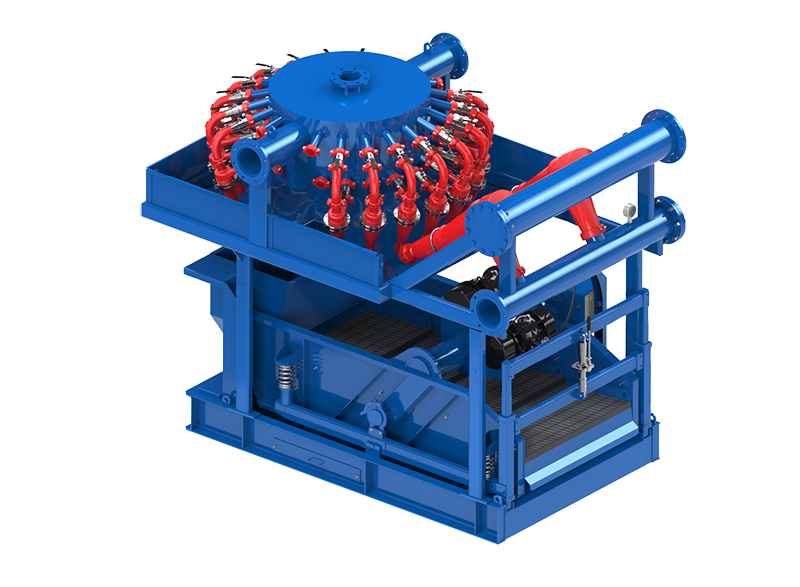

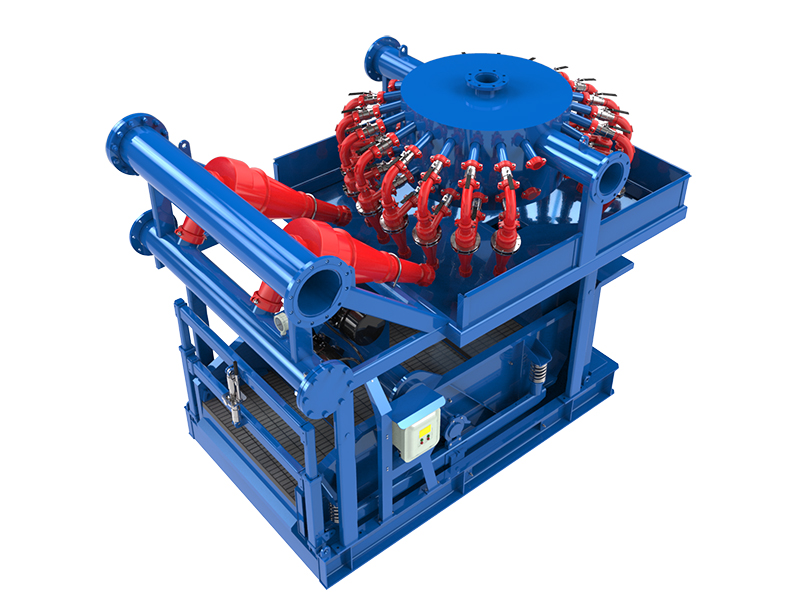

Dome-shaped mud cleaner
Product Introduction:
The dome-shaped mud cleaner is a highly efficient solid control device specially designed for working conditions such as oil drilling, geological exploration,
and horizontal directional drilling (HDD). By adopting a closed dome structure and multi-stage separation technology, drill cuttings, sand particles and harmful solid phases in the drilling fluid can be quickly removed, the performance of the mud can be restored, the drilling cost can be significantly reduced, and the operation efficiency can be improved.
and horizontal directional drilling (HDD). By adopting a closed dome structure and multi-stage separation technology, drill cuttings, sand particles and harmful solid phases in the drilling fluid can be quickly removed, the performance of the mud can be restored, the drilling cost can be significantly reduced, and the operation efficiency can be improved.
Product advantages:
1. High-efficiency solid-phase control can achieve a separation accuracy of 5-74μm (adjustable), with a removal rate of over 90%, effectively maintaining the density and viscosity of the slurry.
2. The domed structure and sealed cabin prevent mud splashing and ensure the cleanliness of the operation.
3. A multi-level solid control system is formed by series connection of vibrating screens and centrifuges, which is suitable for containerized and skid-mounted drilling platforms.
The working principle of the dome-shaped mud cleaner:
The drilling mud is pumped into the domed cabin. The high-frequency vibrating screen is used for primary separation treatment of coarse particles larger than 74μm, and the cyclone group is used for centrifugal separation of fine solid phases ranging from 5 to 74μm. The sand is removed first, followed by the mud.
After purification, the mud is returned to the circulation system, and the drill cuttings are collected and treated through the screw conveyor or the sand discharge port.
After purification, the mud is returned to the circulation system, and the drill cuttings are collected and treated through the screw conveyor or the sand discharge port.
Application field:
Mud circulation systems for oil and gas drilling and offshore platforms
2. Geological exploration and coalbed methane development
3. Horizontal Directional Drilling (HDD)
4. Reduction treatment of waste slurry
