Mud Gas Separators – Design, Function, and Critical Role in Drilling Safety

Mar 27, 2025

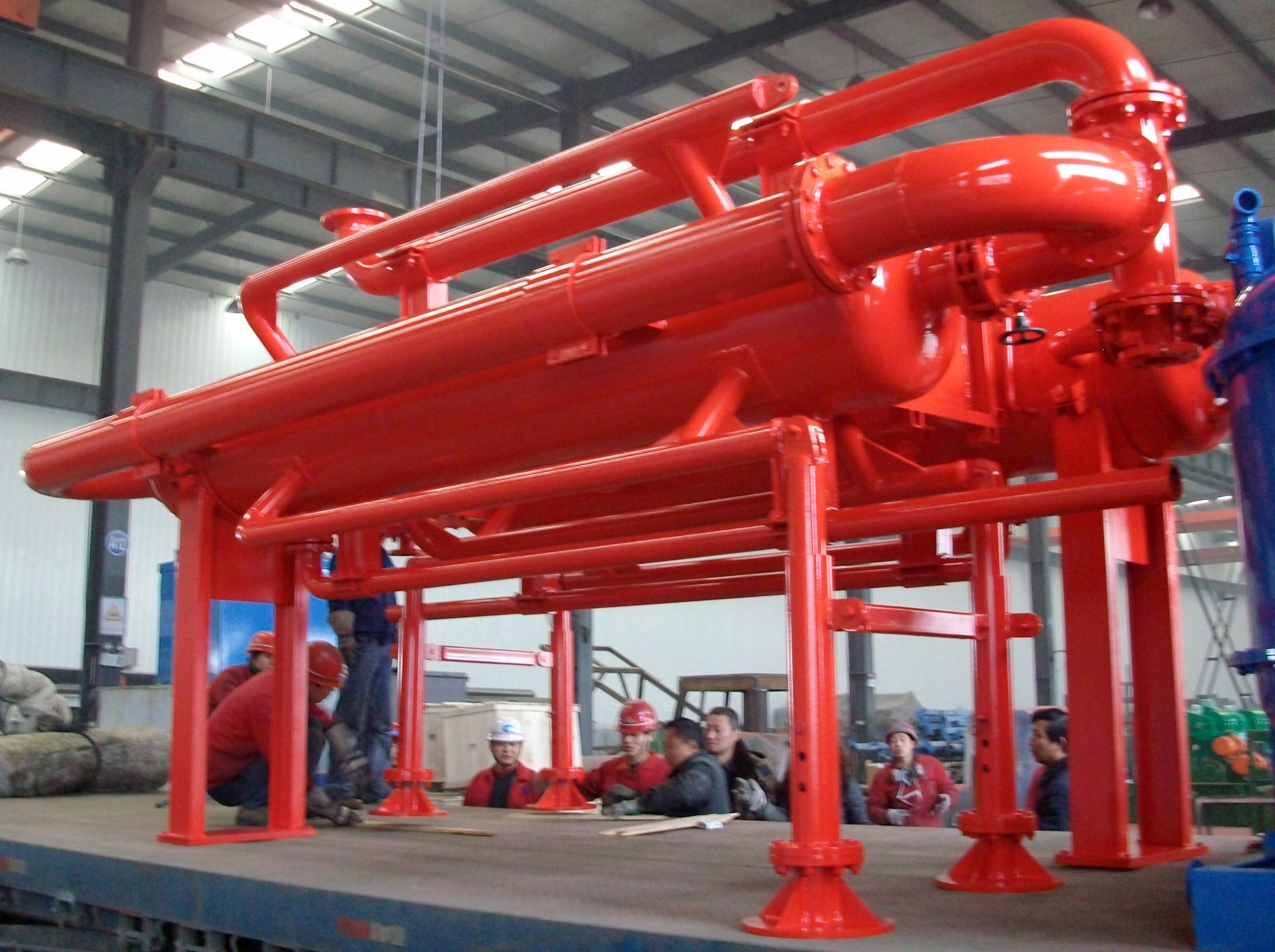

In oil and gas drilling, controlling wellbore pressure is crucial to prevent dangerous blowouts. A Mud Gas Separator (MGS),

also known as a "poor boy degasser," is a key safety device that removes hazardous gases from drilling mud during a kick (uncontrolled influx of formation fluids).

How a Mud Gas Separator Works

An MGS operates on gravity separation and baffling mechanisms to separate gas from drilling mud. The process involves:

1. Gas-Cut Mud Entry

   • Contaminated mud enters the MGS under pressure from the choke manifold.

   • The inlet is designed to reduce fluid velocity, allowing gas bubbles to rise.

2. Separation Chamber

   • Baffle plates disrupt mud flow, enhancing gas breakout.

   • Liquid-gas segregation occurs as gas rises to the top while mud settles.

3. Gas Venting

   • Separated gas exits through a vent line, typically routed to a flare stack.

   • Flame arrestors prevent ignition risks.

4. Degassed Mud Return

   • Clean mud exits the bottom and returns to the mud pits for recirculation.


Key Components of an MGS

• Inlet & Outlet Nozzles – Control mud flow rate.

• Baffles/Deflector Plates – Enhance gas separation.

• Vent Line – Safely directs gas away from the rig.

• Pressure Gauge & Safety Valves – Monitor and prevent overpressure.


Why MGS is Critical in Well Control

• Prevents gas buildup in the mud system, reducing explosion risks.

• Protects downstream equipment (e.g., shale shakers, degassers).

• Complies with API RP 53 and other safety regulations.

A properly functioning MGS is a last line of defense before gas reaches the rig floor. Regular maintenance and correct operation are essential to prevent catastrophic failures.
